Water heater OKC-160

These combined storage water heaters are designed for suspension on the wall with volumes of 80-200 litres. The manufacturer throughout all the history of the heaters production keeps same pitch of the anchoring bolts in order to assure easy replacement of time-expired water heaters. It is also possible to buy the suspension for the pitch of the anchoring bolts reaching 350 mm.

Heating options:

Electric power. Ceramic heating element controlled by the operating thermostat and secured by the safety thermostat (thermal fuse). The thermal range is 5-74C. Connection voltage is 1-PE-N/AC 230 V/50 Hz. The IP 45 electric shielding enables mounting of heaters above baths.

Heat exchanger. The heater may be connected to an external hot water source with the max. temperature of 110C and pressure of 1 MPa . Heater with the adequate output of the heat exchanger must be linked depending on the output of the source. The heat exchanger works in forced circulation mode and also in self-circulation system. The heating water regulation sensor may be inserted into the common receiver with electric installation sensors.

Technical information:

• Water volume: 147 l
• Max. pressure: 6 bar

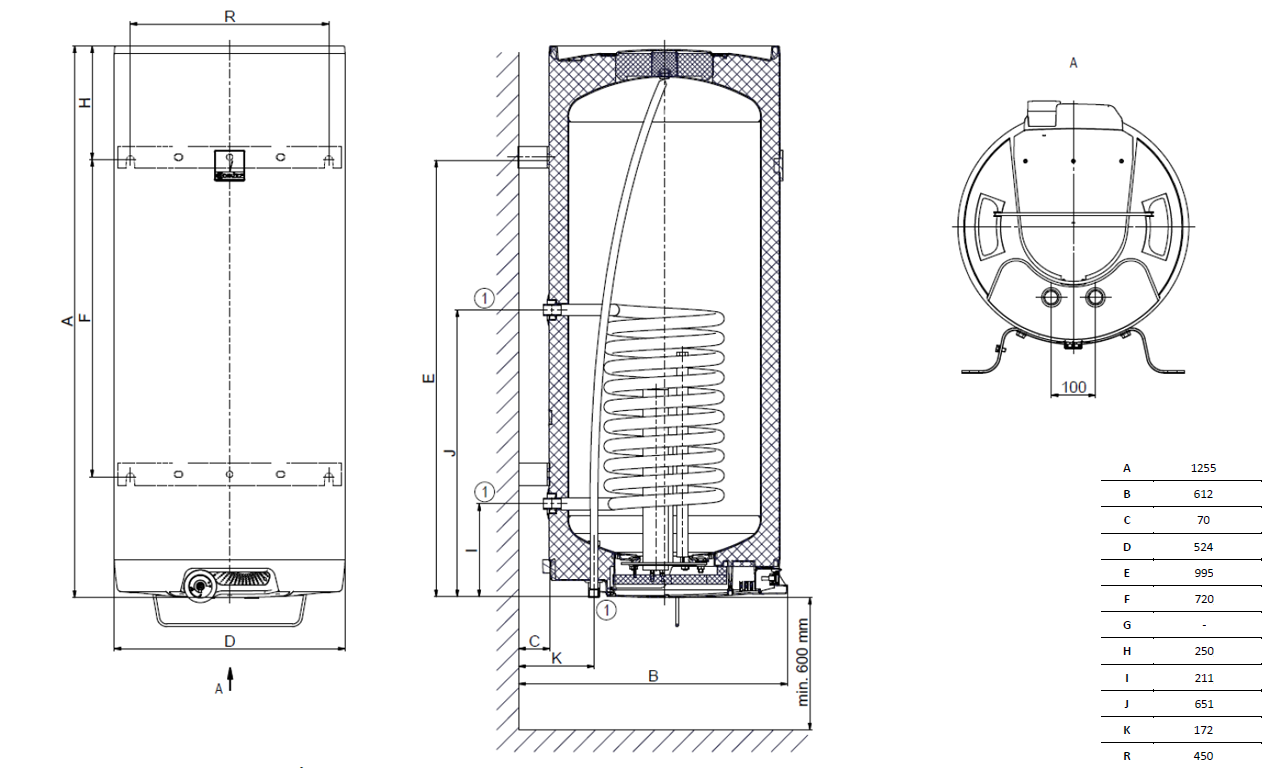

• Height: 1235 mm
• Diameter: 524 mm
• Exchanger surface area: 0,68 m2
• Power input: 2kW
