Pellet boiler BioPel Mini Tower CA 21 kw

-10%

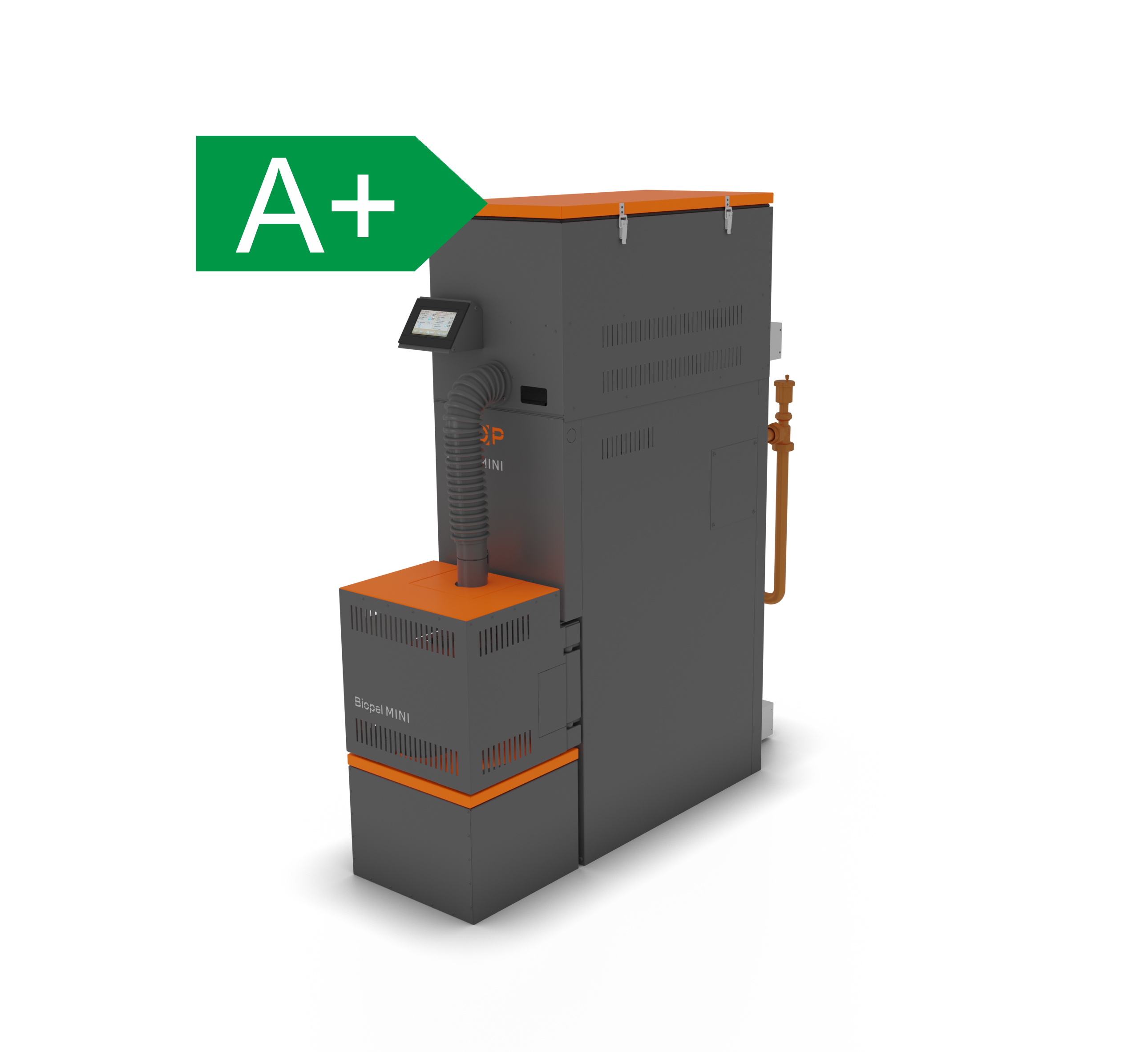

Biopel MINI 10-15 TOWER CA perspektiva zleva

Power output 21kW
Perfect for up to 250m2
ECO series A+ (efficiency: 92,9%)

Pellet boiler Biopel MINI Tower series is meant for the tiniest corners, as the boiler overall width is just 48,2cm. Small dimensions give everyone the opportunity to install boiler even in the smallest rooms.

4749,46 €

4274,51 €

Ask a question about this product

Description

Pellet boiler BioPel MINI Tower is the most carefree boiler on the market. Tower series represent super small solution, as the 21kw boiler width is just 48,2cm. It is perfect for the tiniest corners while still giving you the wanted comfort. Fully automated cleaning system allows you to have long periods between overall maintenance. Small dimensions gives you the opportunity to install boiler even in the smallest boiler rooms. Easy access to the burner and the boiler exchanger ensures simple and fast boiler maintenance. The equipment's eco-friendly nature is due to very low emissions (given the A+ emission class 5). A wide range of accessories can increase the operation and control automation of entire heating system in your house.

Remotely monitoring your heating with your mobile phone, gives you an overview of the temperatures in the house and the condition of heating system regardless of where you are. Be noted that internet module is already integrated into every BioPel MINI Tower boiler!

This BioPel MINI Tower series provides high comfort in pellet heating and allows very simple control of the control unit. The control unit is equipped with a touch screen, allowing to set and change all parameters easily. For example solar collector unit, heating control based on the outdoor temperatures, room thermostats, 2 different heating circuits (i.e underfloor and radiators), lambda sensor, external larger pellet container work etc.

Leaflet:

Set includes:

* Pellet boiler
* Pellet burner 21kw
* Automated bottom ash removal system
* Compressor cleaning for heat exchanger and burner head
* Touch screen control panel V9
* Touch screen room thermostat RT-10
* Tower version pellet hopper 40kg

Technical data for BioPel MINI Tower 21:

Nominal output	kW	21
Minimal output	kW	6
Fuel (wood pellet)	mm	6-8
Fuel consumption	kg/h	1,38-4,68
Emission class		5 / Ekodesign
Efficiency	%	92,9
Water volume	L	54
Required chimney draught	Pa	8
Maximum pressure	Bar	2
Maximum heated temperature	C	80
Minimum return temperature	C	55
Weight	kg	240
B Height	mm	1257
H Width	mm	482
J Depth	mm	1170
E Fume duct location	mm	308
G Total depth with automatic ash removal	mm	1277
F Total depth with hydraulic set	mm	1338
O Outlet water funnel from the ground	mm	992
L Fume duct position from the ground	mm	898
N Inlet water funnel location from the ground	mm	156
M Release valve position from the ground	mm	145
P Inlet water funnel location from the fume duct	mm	155
Q Outlet water funnel location from the fume duct	mm	155
R Flue pipe diameter	mm	150
X Boiler width with handrail	mm	538
Connecting outlets	DN	G1 1/4"
Z1 Depth with TOWER 40 hopper	mm	1010
Z1 Depth with TOWER 60 hopper	mm	1110
